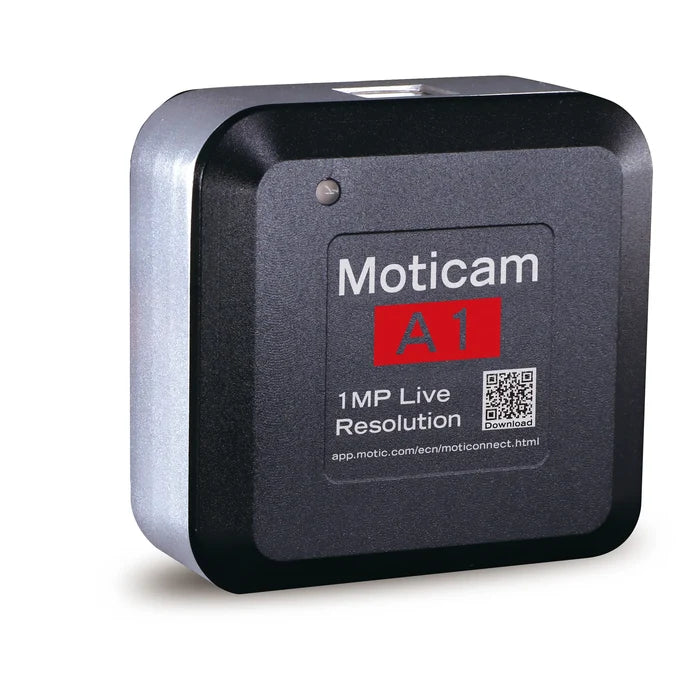

Moticam A1 Digital Microscope Camera

The Moticam A1 is an affordable, easy-to-use digital microscope camera designed for education, routine laboratory work, and image documentation. Equipped with a 1MP sCMOS sensor, it delivers crisp live images at up to 30 frames per second, making it ideal for classroom demonstrations, inspections, and everyday microscopy applications.

The camera connects via USB 2.0 and includes both C-mount and eyepiece adapters, allowing it to be used with a wide variety of compound and stereo microscopes. MotiConnect software provides image capture, video recording, measurements, white balance, exposure controls, and calibration tools for a complete digital imaging solution.

Features

• 1MP sCMOS image sensor
• 1280 × 720 maximum resolution
• Up to 30 fps live image display
• Progressive scan with rolling shutter
• 4.1 × 4.1 µm pixel size
• USB 2.0 plug-and-play connectivity
• Standard C-mount with included 12mm focusable lens
• Compatible with Windows, macOS, and Linux
• Supports TWAIN, DirectShow, and SDK integration
• MotiConnect software for image capture, video recording, measurements, calibration, and image enhancement
• USB powered—no external power supply required

Specifications

• Sensor: 1/3.1" sCMOS
• Sensor Diagonal: 5.95 mm
• Resolution: 1MP (1280 × 720)
• Live Display: 1280 × 720 @ 30 fps; 1024 × 768 @ 30 fps
• Pixel Size: 4.1 × 4.1 µm
• Scan Mode: Progressive
• Shutter: Rolling Shutter
• Data Interface: USB 2.0
• Operating Temperature: -10°C to +60°C (non-condensing)
• Power: 5V via USB

Compatibility

• Microsoft Windows 7/8/10
• macOS 10.9 or later
• Linux Ubuntu 16.04 or later

Package Includes

• Moticam A1 Camera
• 12mm Focusable Lens
• CS Ring Adapter
• 30mm Eyepiece Adapter
• 38mm Eyepiece Adapter
• USB 2.0 Cable
• Motic 4-Dot Calibration Slide
• Macro Tube
• Calibration Card

The Moticam A1 is an excellent entry-level microscope camera that provides reliable digital imaging, straightforward installation, and the essential tools needed for education, documentation, and routine microscopy.

Brochure

Moticam A1 Brochure
